80t/H Mobile Asphalt Batching Plant Chinese Asphalt Mixing Plant High Efficiency

認証
中国 Nanyang Xinda Electro-Mechanical Co., Ltd. 認証
中国 Nanyang Xinda Electro-Mechanical Co., Ltd. 認証
オンラインです

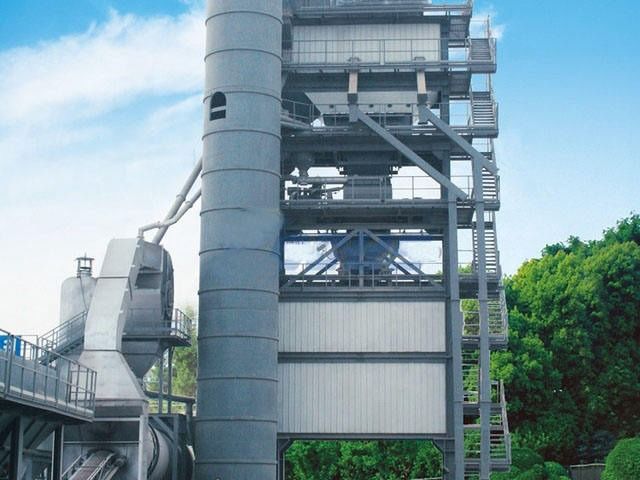

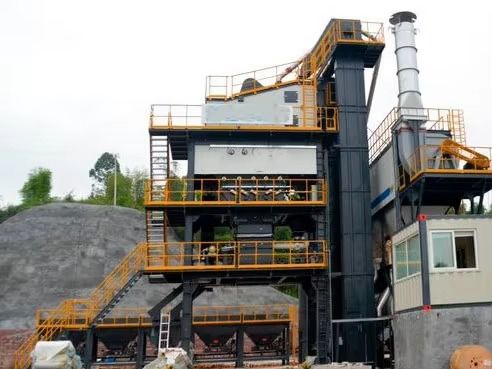

80t/H Mobile Asphalt Batching Plant Chinese Asphalt Mixing Plant High Efficiency

80t/H Mobile Asphalt Batching Plant Chinese Asphalt Mixing Plant High Efficiency

大画像 :  80t/H Mobile Asphalt Batching Plant Chinese Asphalt Mixing Plant High Efficiency

商品の詳細:
起源の場所: 中国
ブランド名: XDEM
証明: CE ISO
モデル番号: MLB80
お支払配送条件:
最小注文数量: 1 セット
価格: USD88000
パッケージの詳細: ヌード
受渡し時間: 45 営業日
供給の能力: 月500セット
詳細製品概要
Model: MLB80 Rated capacity: 80t/h
Burner: Oil burner Oil Consumption: 6.5kg/t
Mixer capacity: 1250kg/batch Total power: 275KW
ハイライト:

Mobile Asphalt Batching Plant

,

High Efficiency Asphalt Mixing Plant

,

80t/h Asphalt Batching Plant

XDEM 80t/h Mobile Asphalt Batching Plant Chinese Asphalt Mixing Plant for Sale

80t/H Mobile Asphalt Batching Plant Chinese Asphalt Mixing Plant High Efficiency 0

Excellent performance
Strong breakout force and traction ensures the outstanding adaption to the tough working condition.
Low emission engine features more perfect monitoring and diagnosis function.
Intelligent control independent ventilation system and drive axle ventilation system ensure that the machine is in the best heat balance temperature.
Load sensing hydraulic system controls accurately and saves the energy and lowers the consumption.
The drive axle features strong carrying capacity, adapting to various kinds of dangerous working conditions.

High efficiency
Fast operation: cutting force and speed are distributed reasonably to ensure the fast and efficient operation.
Flexible steering: load sensing steering system, flexible and efficient.
Sufficient power: dual-pump combination, the power is used sufficiently. The steering pump flow is delieverd to the steering system preferentially, and the surplus flow is delivered to the working system to achieve the dual-pump combination, decreasing the working pump displacement and improving the reliability, saving the energy and accelerating the movement speed.

Technical Specification:

Description
Unit
Parameter value
Rated production rate
t/h
80
Mixing capacity
kg /batch
1250
Fuel consumption rate
kg/t
≤6.5
Dust emission concentration (bag dust)
mg/Nm³
≤20(Washing material)
Blackness of exhaustion(Ringelman Level)
Level
≤I
Static measurement accuracy
Aggregate
±0.3 %
Powder
±0.3 %
Asphalt
±0.2 %
Dynamic measurement accuracy
Aggregate
±2.5 %
Powder
±2.5 %
Asphalt
±2.0 %
Total installed power
kW
274
Maximum stand-alone power
kW
55
Occupied area
m2
812(29m×28m)



About our company

Our company is one of the leading companies in asphalt and concrete equipment technology, support and service in China.

Our complete product lines include:
Stationary asphalt mixing plant / mobile asphalt mixing plant / continuous asphalt mixing plant/ concrete mixing plant / mobile concrete mixing plant / concrete mixer / coal burner / other accessories.

Our factory is located in the center of Henan Province, covering an area of more than 106,000 square meters of the office space.

Founded in 2002, we have become one of the most reliable partners of construction projects at home thorough ongoing technical investment. Our asphalt mixing plants and concrete mixing plants have been used in highways, high-grade highways, urban roads and airport construction and got a high reputation for their excellent performance.

Today we hold 18 patents, which owns to the concerted efforts of our employees including R&D team, marketing team and production & procurement team.

Our asphalt plants and concrete plants have got CE, GOST and ISO9001 certifications.

Along with the high-quality products and genuine spare parts, we focus on providing better services. Now, we have a professional service group for our global customers. We dispatch our service personnel all over the world to help set-up asphalt or concrete plants and train operators.

We will continue to strive for new technology and better solutions, while serving our customers with first-class products and excellent services.
