XDEM 35KN Tractor For QYCD35-WXH HELI Tow Tractor For Aircraft Towing

XDEM 35KN Tractor For QYCD35-WXH HELI Tow Tractor For Aircraft Towing

大画像 :  XDEM 35KN Tractor For QYCD35-WXH HELI Tow Tractor For Aircraft Towing

商品の詳細:
起源の場所: 中国
ブランド名: XDEM
証明: CE
モデル番号: QYCD35-WXH
お支払配送条件:
最小注文数量: 1 セット
価格: USD15000/set
パッケージの詳細: ヌードパッキング
受渡し時間: 30営業日
供給の能力: 月産100セット
詳細製品概要
状態: 新品 馬力: < 150馬力
排出基準: EURO 5 ブランド名: HELI
エンジン容量: 4 - 6L 駆動ホイール: 4WD
車両総重量: 5780KG
ハイライト:

Aircraft Towing Tow Tractor

,

XDEM Tow Tractor

,

HELI Tow Tractor

Product Description

Suspension system
The tractor adopt leaf spring suspension at front and rear axle which are made by professional auto parts manufacturers.Further more, the shock absorber is assembled on the front axle, which makes the tractor has favorable stability.



Hydraulic system
The tractor assembled with HELI homemade integrated gear pump. The pump integrated monostable shunt valve, thus gear pump constant flow output, simple pipeline and few fault points is achieved,and reliability of hydraulic system is improved.
Enlarged hydraulic oil tank ensures working and cooling requirement. The hydraulic oil temperature in pipelineS90°C.



Cab
The fully framed cab has enough strength. What is more,the cab is wide and has good view from where omnibearing observing can be achieved.
The front, rear, left and right windscreen of the cab are all safety glass, and the front glass is equipped with two-stage multi-speed control wiper.


Operation stick& pin component
The tractor adopts traction pin mechanism with automatic unhook and automatic guide function, the traction pin is assembled in cab, the operation is easy and efficient. Self lock function of traction pin mechanism effectively avoids trailer hook suddenly off
caused by vehicle jolt during travelling or mis-operation, improves travelling safety.

Parameter



  Unit QYCD35-WXH QYCD45-WXH QYCD50-WXH
Max. drawbar. pull KN 35 45 50
Max. travel speed(without load) km/h 24 23 23
Grade ability(without load) % 30 30 30
Min. turning radius mm 4100 4100 4100
Total weight kg 5740 6810 7600
Engine model   CA4DF3-13GG3U CA4DF3-13GG3U CA4DF3-13GG3U
Rated output kw/rpm 96/2200 96/2200 96/2200
Max. output N.m/rpm 500/1500~1700 500/1500~1700 500/1500~1700
Fuel tank capacity L 100 100 100
External dimensions mm 3775*1995*2350 3775*1995*2350 3775*1995*2350
Wheel base mm 2000 2000 2000

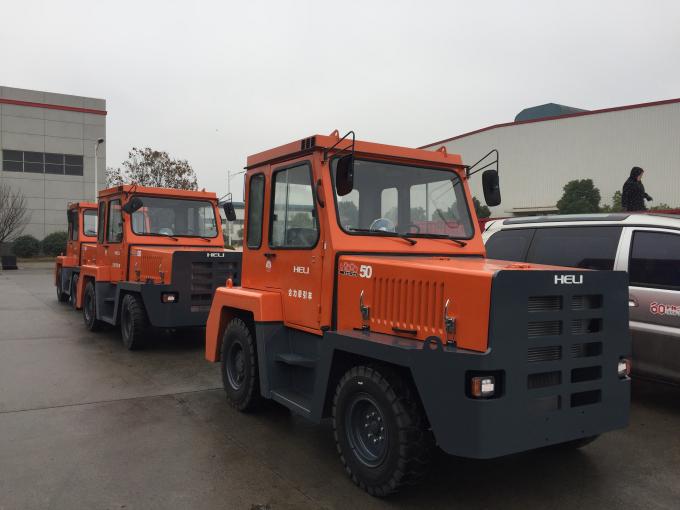

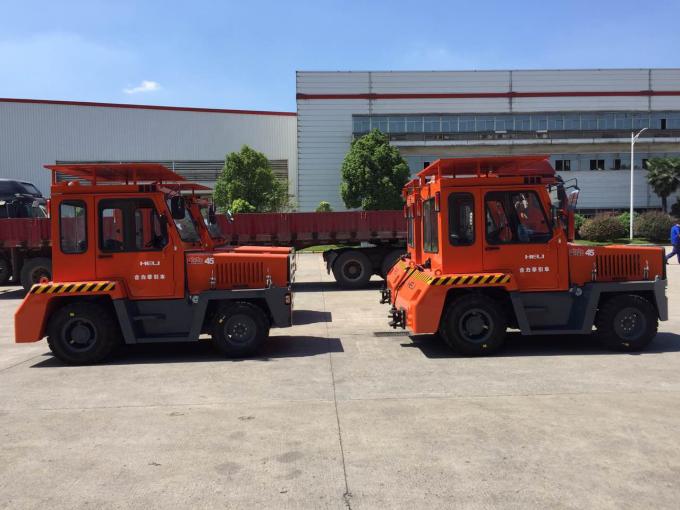

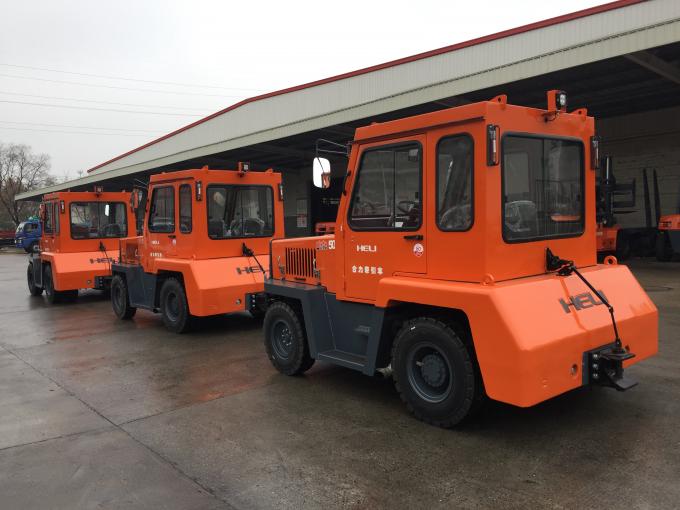

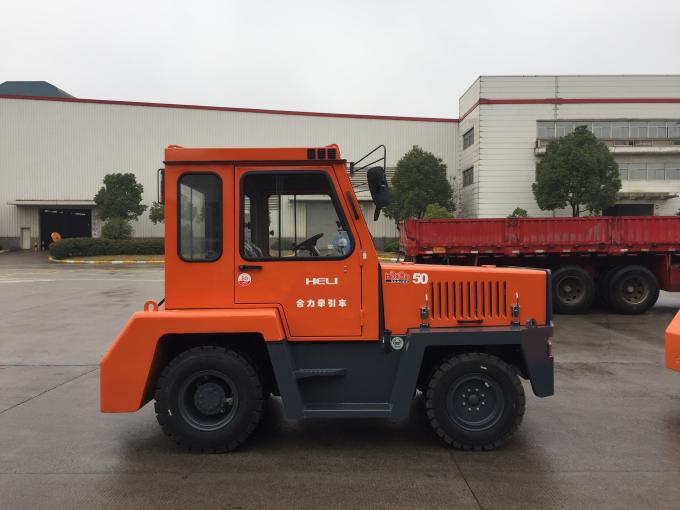

Product show

XDEM 35KN Tractor For QYCD35-WXH HELI Tow Tractor For Aircraft Towing 0XDEM 35KN Tractor For QYCD35-WXH HELI Tow Tractor For Aircraft Towing 1XDEM 35KN Tractor For QYCD35-WXH HELI Tow Tractor For Aircraft Towing 2XDEM 35KN Tractor For QYCD35-WXH HELI Tow Tractor For Aircraft Towing 3
