商品の詳細:
お支払配送条件:
|
| キーセールスポイント: | 精度 | コアコンポーネント: | PLC,エンジン,ベアリング,ギアボックス,圧力容器,モーター,ギア |
|---|---|---|---|
| 機械テストレポート: | 提供された | 保証: | 1年 |
| ビデオの発信検査: | 提供された | 電圧: | 380V |
| 定格電力: | 12.4 | 体重（kg）: | 4200 |
| 寸法（l*w*h）: | 7500x2900x2100 mm | 切断刀の直径: | 250 -285 mm T2.0 |
| スピンドルサーブモーター: | 7.5 kW | スピンドル速度: | 20-160 rpm |
| 単食の長さ: | 10~800mm | 許容給餌長: | 2000-6000年 |
| 圧力範囲: | 7 MPa |
Product Information

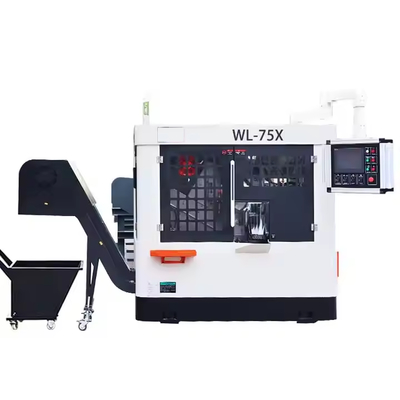

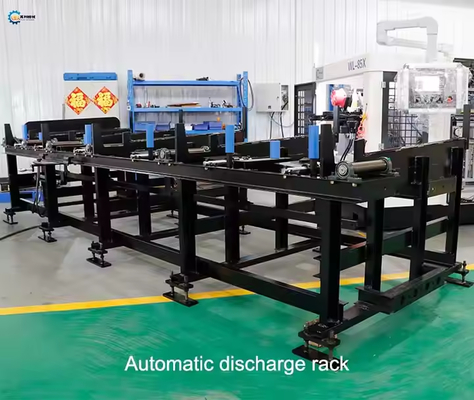

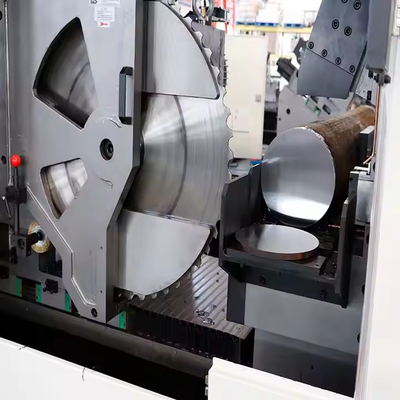

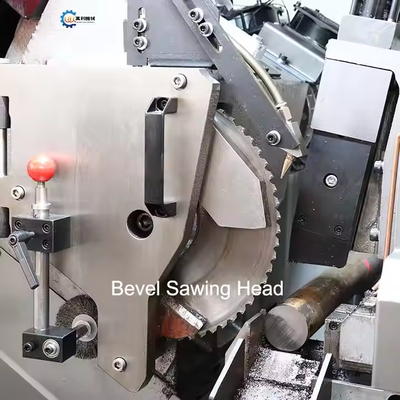

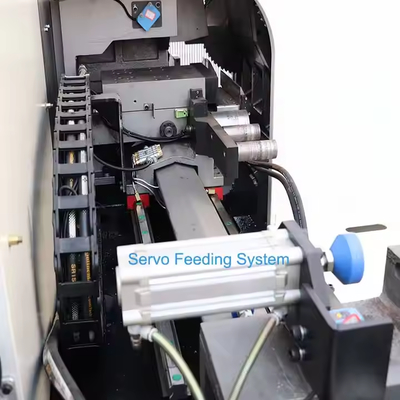

This machine is a fully automatic high speed metal circular saw machine, it specially designed for cutting round solid rods and square solid rods, according to customer’s requirements for high speed cutting and high precision cutting. Fully automatic Precision Circular Saw Machine is built with a PLC-controlled automation system. Made from high-quality raw materials, our machine provides precision and in-depth sawing with its Ceramic saw blades and stainless steel blades, increasing productivity while reducing labor. The Machine consists of a Spindle Box, Mitsubishi Servo Motor, Servo Feeding System, Discharge Device, Hydraulic Clamping, Oil Mist System, Feeding Rack and so on. It can cut all kinds of Metal Materials.
Parameters
| Machine Model | WL-75X | WL-90X | WL-120X | WL-150X | WL-260P | WL-300P | |
| Sawing Capacity | Bar(mm) | 12--75 | 12--90 | 20--120 | 40--150 | 120--260 | 160--300 |
| Square Materials(mm) | 12--45 | 12--70 | 20--80 | 40--105 | 120--195 | 160--220 | |
| Round Tube(mm) | 12--75 | 12--90 | 20--120 | 40--150 | 120--260 | 160--300 | |
| Square Tube(mm) | 12--45 | 12--70 | 20--80 | 40--105 | 120--195 | 160--220 | |
| Head Spindle | Saw Blade Diameter (mm) | 250-285 t2.0 | 315 t2.25 | 380 t2.6 | 460 t2.7 | 840 t4.0 | 840 t4.0 |
| Spindle Speed(rpm) | 20--160 | 20--150 | 20--120 | 20--70 | 15-40 | 15-40 | |
| Spindle Servo Motor(KW) | 7.5 | 11 | 11 | 15 | 45 | 45 | |
| Feeding Clamps | Single Feed Length(mm) | 10--800 | 10--800 | 10--800 | 10--800 | 10--800 | 10-800(mm) |
| Hydraulic Device | Hydraulic Drive Motor(KW) | 2.25(4P) | 2.25(4P) | 3.75(4P) | 3.75(4P) | 5.5(4P) | 5.5(4P) |
| Pressure Range (MPa) | 7 | 7 | 7 | 7 | 7 | 7 | |
| Hydraulic Oil Capacity (L) | 90 | 70 | 110 | 120 | 160 | 170 | |
| Size and Weight | Weight: Machine and Rack (KG) | 4200 | 4000 | 6000 | 6700 | 12600 | 13000 |
| Size (mm) |
7500X2900 X2100 |
7500X2900 X2000 |
7700X3200 X2250 |
7700X3400 X2250 |
8300X4150 X2570 |
9120X4400 X2605 |
|
